Description
Where Shop Curtain Tracks Are Used

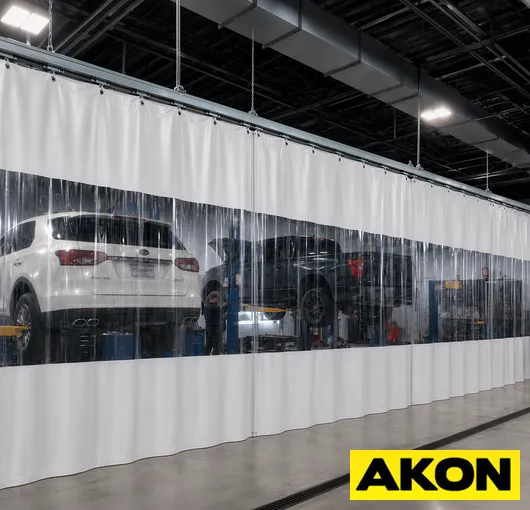

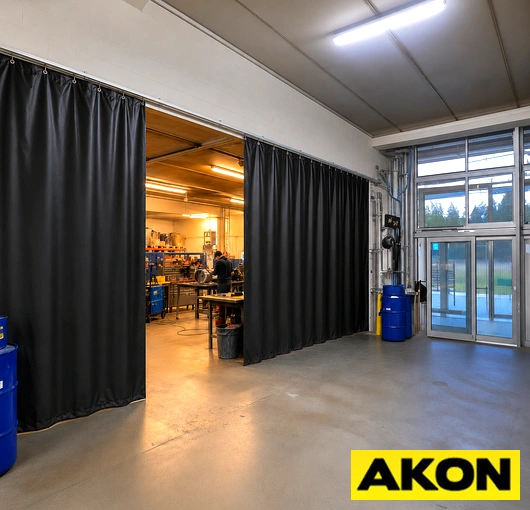

Workspace Dividers for Shops and Garages
Machine shops, welding shops, woodworking shops, and auto repair garages use industrial curtain track to hang divider curtains between work stations. The ceiling-mounted track keeps the floor completely open for tool carts, vehicles, and equipment. Curtains pull closed during active work (grinding, welding, painting) and push aside when you need the full open shop floor.

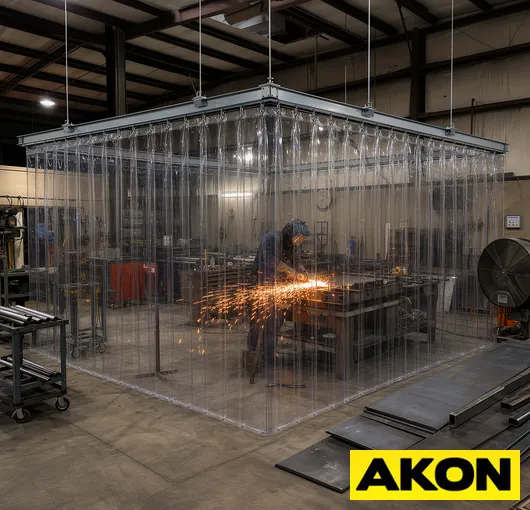

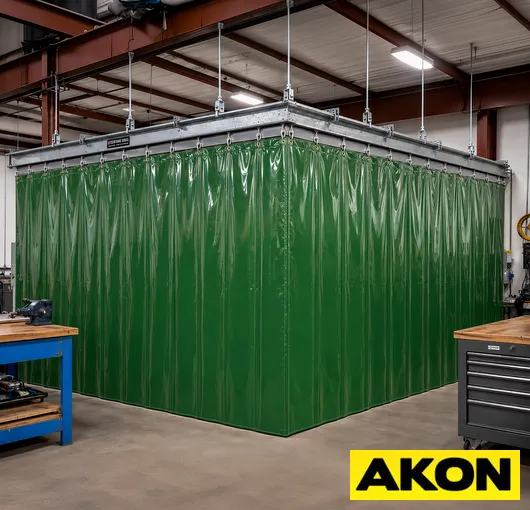

Containment for Dust, Sparks, and Fumes
Grinding dust, welding sparks, paint overspray, and sawdust spread across an open shop floor when there are no barriers. Shop curtain tracks with vinyl or welding curtains confine these hazards to the work area where they originate. This protects finished parts, vehicles, and adjacent workers from contamination and exposure. The enclosed galvanized track resists the oils, solvents, and abrasive dust common in shop environments.
Flexible Shop Layouts
We quote curtain track systems to match your shop dimensions. Single dividers, corner enclosures, and multi-bay separation layouts are all available. The modular design lets you add more track later as your shop grows or your workflow changes. Contact us with your shop measurements for a free quote.
Frequently Asked Questions
What type of curtain track is best for a machine shop or fabrication shop?
Enclosed galvanized steel curtain track is the best choice for shops. The enclosed channel keeps metal shavings, grinding dust, and oil mist out of the roller mechanism. The galvanized coating resists corrosion from coolants and solvents. Steel roller hooks handle heavy shop curtains without sagging.

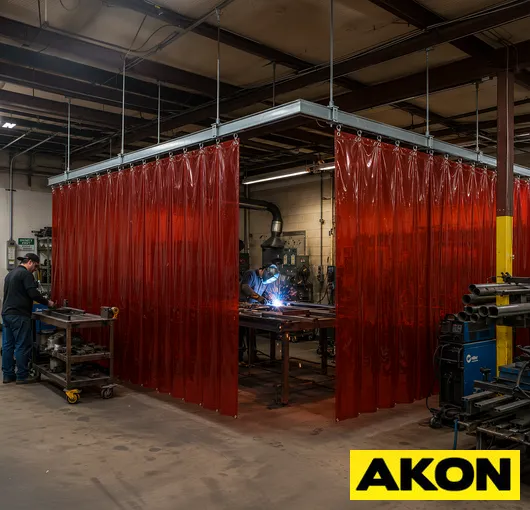

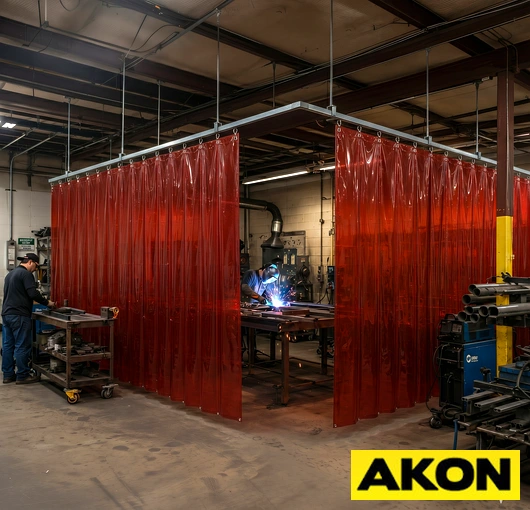

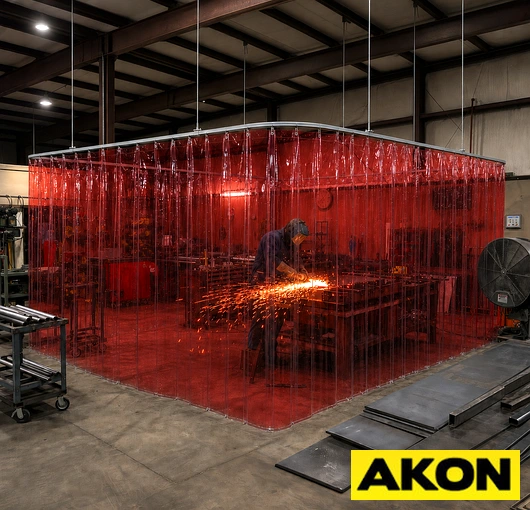

Can shop curtain tracks separate a welding area from the rest of the workspace?
Yes. Ceiling-mounted track with welding curtains creates a contained welding bay that blocks UV light, sparks, and fumes from reaching adjacent work areas. Curtains slide open for moving materials in and out between welds. This is one of the most common shop curtain track applications.

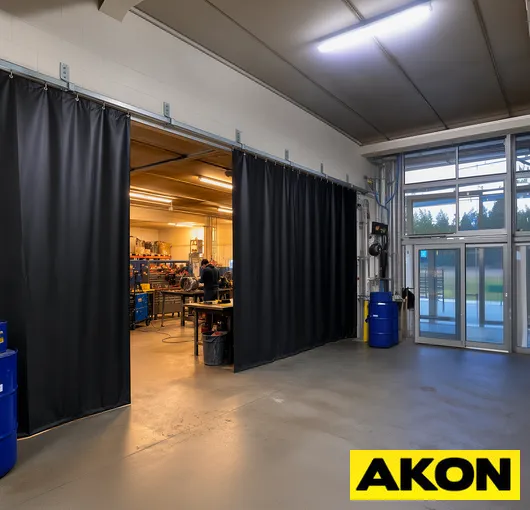

Are shop curtain tracks strong enough for heavy vinyl or insulated curtains?
Yes. Steel 2-wheel hooks support up to 75 lbs each, and 4-wheel hooks handle 125 lbs each. Heavy vinyl, insulated quilted panels, and industrial welding curtains all work with the appropriate hook type spaced every 12 inches.
Can I install shop curtain tracks myself without hiring a contractor?
Yes. The bolt-together track design requires only a drill, tape measure, and level. Mount ceiling brackets every 3 to 5 feet, connect track sections with set screws, hang roller hooks, and attach curtains. Most shop owners complete installation in a few hours.
Will shop curtain track hold up in environments with oil, coolant, and metal dust?
Yes. Hot-dip galvanized steel corrodes at 1/30 the rate of bare steel. The coating handles continuous exposure to cutting oils, water-based coolants, grinding swarf, and metal dust. The enclosed track channel prevents debris from reaching the roller hooks inside.

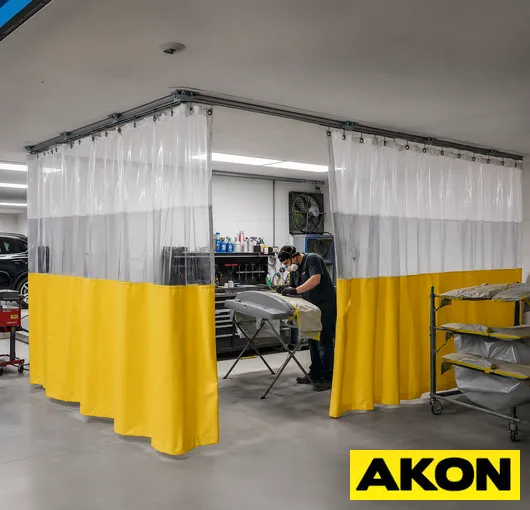

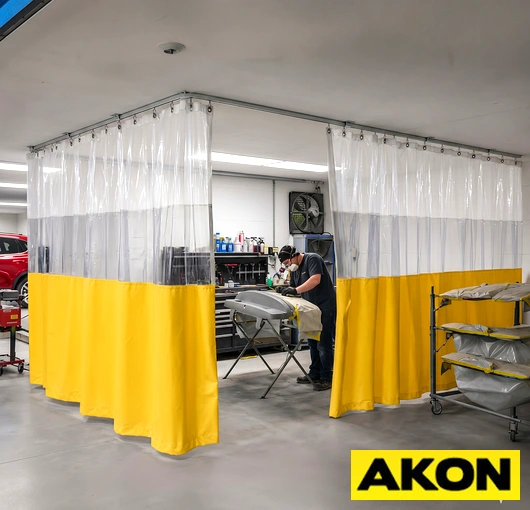

Can shop curtain tracks create a small paint area inside a larger shop?
Yes. Track with 90-degree corners creates an enclosed paint area with curtain walls on three or four sides. The curtains contain overspray and help maintain airflow for drying. This gives small shops a dedicated paint zone without building permanent walls.
What is the minimum ceiling height needed for shop curtain tracks?
The track itself adds about 1.25 inches below the mounting surface. Curtains hang 1 to 3.75 inches below the track depending on the roller hook type. Most shops with 8-foot or higher ceilings have enough clearance. The curtain length is cut to match your floor-to-ceiling measurement.
Can I extend or reconfigure shop curtain tracks later?
Yes. The modular bolt-together system lets you add new track sections, connect corners, or extend existing runs at any time. New sections use the same set screw connectors. Many shop owners start with a single divider and expand as their workspace needs change.
Do shop curtain tracks include everything needed for installation?
Orders include track sections, set screw connectors, end stops, roller hooks, and mounting brackets. You supply mounting screws or bolts matched to your ceiling type (wood, steel, or concrete). Curtains are ordered separately based on your material and size needs.
How fast do shop curtain tracks ship?
All orders ship in 3 to 5 business days via UPS or FedEx. An order confirmation with itemized components is emailed after ordering. You can specify your own shipping account if preferred.
Description
Your industrial curtain track hardware kit includes all the components that you need to hang your curtains. Once you place your order we will email you an order confirmation with all of the components itemized for you to review. Please note that the track is not cut to the exact sizes you input on the form. Track pieces will ship out in stock sizes and are made to be field cut with a hacksaw or power saw. Components included with your kit include.
- Nylon roller wheels spaced every 12″
- Track supports for spacing every 5′
- Straight track sections that splice together
- End stops to keep rollers inside of the track
- Optional – 90 Degree radius corner
- Optional – 90 Degree hard corner
- Lifetime Warranty
How the Track Assembles
- The track slips together and is bolted with set screws for a rigid construction.
- The track can also be cut down to your exact size once it arrives.
- Track supports are provided for every 5′ but you can space them out wider if needed
Material
- 16 gauge hot dipped galvanized steel
- Nylon roller hooks have a 40 lb load rating
- Steel track is rated for 100 lbs per linear foot
Choose From 6 Support Styles
Dimensional Drawings
Lead Time
- Ships in 3-5 work days
- Ships UPS or FedEx. You can also specify your shipping account
- Once you place your order we will email you an order confirmation with all of the components itemized for you to review.
Warranty
- Lifetime warranty on manufacturing defects
