Where Threaded Rod Curtain Track Mounting Is Used
Suspending Track from High Ceilings

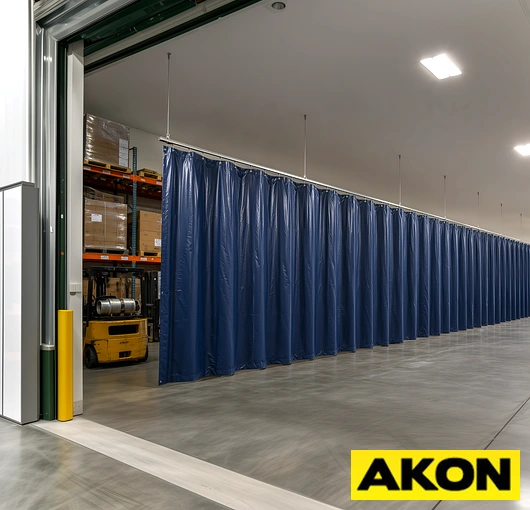

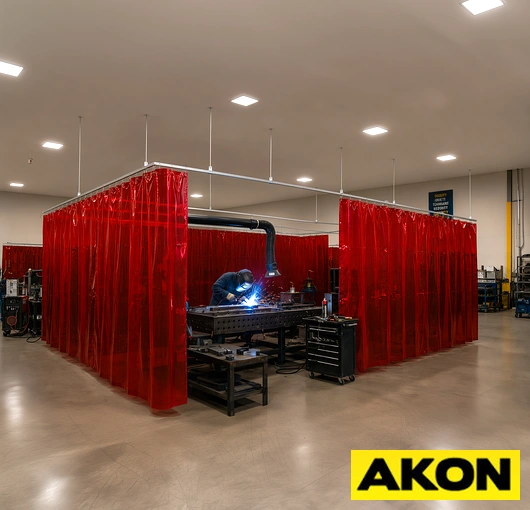

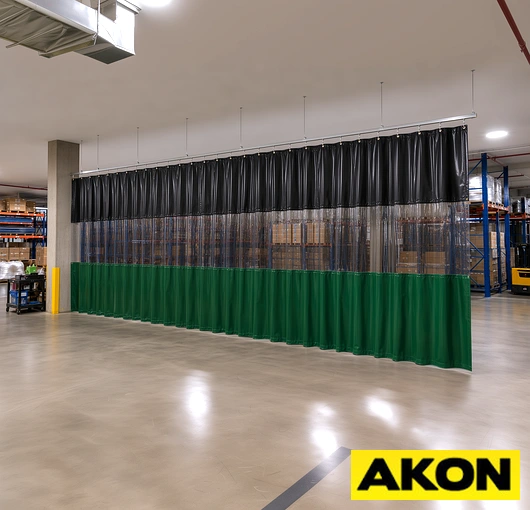

Warehouses, manufacturing plants, and big-box commercial spaces often have ceilings 20 feet or higher. Industrial curtain track mounted on threaded rod drops brings the track down to the height where curtains are needed. The 3/8-inch threaded rod is available at any hardware store and cuts to exact length with a hacksaw. Support rod drops every 3 to 5 feet keep the track level and rigid.
Versatile Ceiling Attachment Points
Threaded rod mounting works with nearly any ceiling structure. Rod brackets bolt to wood joists, lag into steel beams, anchor to concrete decks, or clamp to open-web trusses using beam clamps. This flexibility makes it the go-to mounting method for buildings where flush ceiling mounting is not practical due to obstructions, ductwork, or extreme ceiling height.
Custom Drop Lengths and Layouts
We quote complete track systems with threaded rod brackets included. You specify the drop distance from ceiling to desired track height, and we provide the brackets and hardware. The threaded rod itself is sourced locally at any hardware store for exact fit. Contact us with your ceiling height and layout for a free quote.
Frequently Asked Questions
What size threaded rod is used for curtain track ceiling mounting?

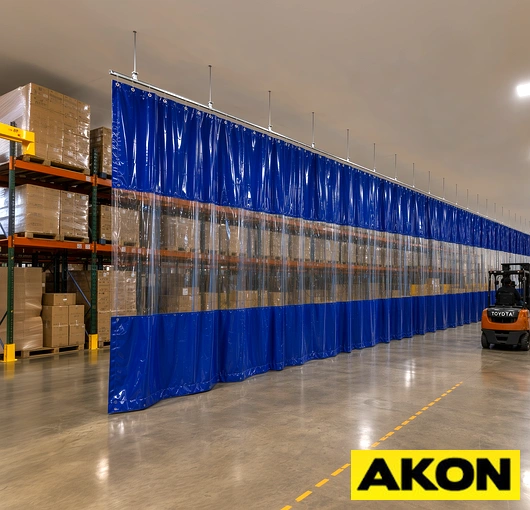

Standard 3/8-inch threaded rod is used. This size is available at any hardware store and provides more than enough strength to support the track and curtain weight. The rod threads into the mounting bracket at the top and connects to the track bracket at the bottom.
How far can threaded rod drop curtain track below the ceiling?
Threaded rod drops of 1 foot to 15 feet or more are common. The rod length is cut to match your exact ceiling height and desired track position. For drops longer than 8 feet, adding a cross-brace or using two parallel rods per bracket point prevents sway.
How far apart should threaded rod support points be spaced?
Standard spacing is every 5 feet along the track. For heavy curtains or longer rod drops, reduce spacing to every 3 feet. This keeps the track level and rigid. Your quote will specify the correct spacing based on your curtain weight and drop distance.
Can threaded rod mounting attach to steel I-beams or open-web trusses?
Yes. Beam clamp brackets attach to I-beams and horizontal steel members with set screws. For open-web trusses, brackets bolt through the top chord. No welding or drilling into the structural steel is required in either case.
Is threaded rod curtain track mounting suitable for warehouse curtain dividers?
Yes. This is one of the most common mounting methods in warehouses with high ceilings. The threaded rod brings the track down to a practical curtain height (typically 10 to 14 feet) while the ceiling structure may be 25 feet or higher above the floor.
Can I use threaded rod mounting with 90-degree corners and enclosures?

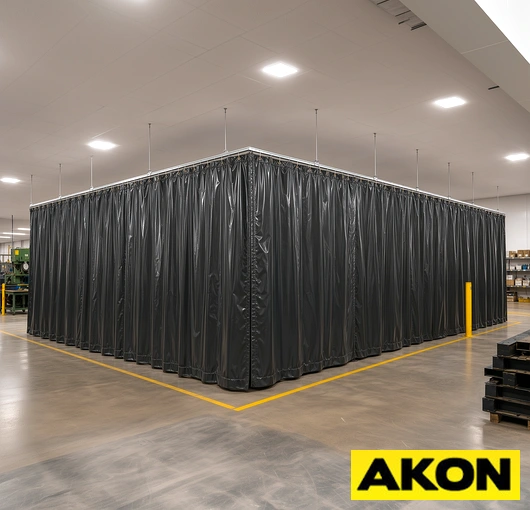

Yes. The threaded rod brackets attach at any point along the track, including near corners. The 90-degree radius corner pieces work the same way whether the track is flush-mounted to a ceiling or suspended on threaded rod. Full enclosures and L-shapes are fully supported.
What tools are needed to install threaded rod curtain track mounting?
A drill, wrench, tape measure, level, and hacksaw (to cut threaded rod to length). The system uses standard nuts and washers to secure the rod to brackets. No welding or specialty tools are required. Most installations complete in a few hours per 50-foot run.
Does the threaded rod come included with the curtain track order?
The threaded rod mounting brackets are included with your track order. The threaded rod itself is purchased separately at your local hardware store, cut to the exact drop length you need. This keeps shipping costs down and ensures a precise fit for your ceiling height.
Can threaded rod mounting work around ceiling ductwork and obstructions?
Yes. The rod drop positions can be offset to avoid ducts, conduit, lighting, and other ceiling obstructions. Track routing with corners can also navigate around obstacles. We can help plan your layout if you share photos or drawings of your ceiling.
What warranty covers threaded rod curtain track mounting hardware?
All track hardware and mounting brackets carry a lifetime manufacturer warranty. This covers the galvanized steel track, rod brackets, connectors, end stops, and roller hooks. A 30-day return policy applies from the shipping date.
Description
Your industrial curtain track hardware kit includes all the components that you need to hang your curtains. Once you place your order we will email you an order confirmation with all of the components itemized for you to review. Please note that the track is not cut to the exact sizes you input on the form. Track pieces will ship out in stock sizes and are made to be field cut with a hacksaw or power saw. Components included with your kit include.
- Nylon roller wheels spaced every 12″
- Track supports for spacing every 5′
- Straight track sections that splice together
- End stops to keep rollers inside of the track
- Optional – 90 Degree radius corner
- Optional – 90 Degree hard corner
- Lifetime Warranty
How the Track Assembles
- The track slips together and is bolted with set screws for a rigid construction.
- The track can also be cut down to your exact size once it arrives.
- Track supports are provided for every 5′ but you can space them out wider if needed
Material

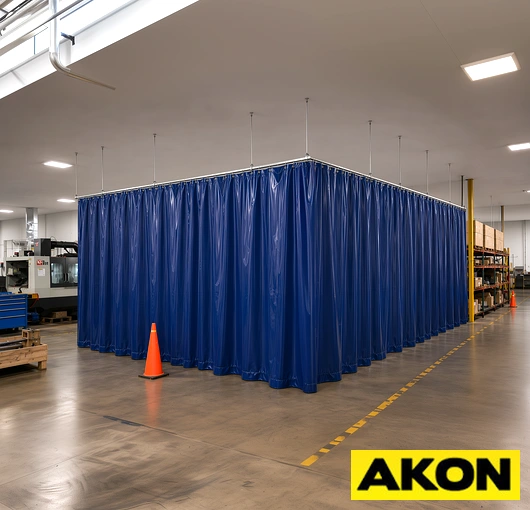

- 16 gauge hot dipped galvanized steel
- Nylon roller hooks have a 40 lb load rating
- Steel track is rated for 100 lbs per linear foot
Choose From 6 Support Styles
Dimensional Drawings
Lead Time
- Ships in 3-5 work days
- Ships UPS or FedEx. You can also specify your shipping account
- Once you place your order we will email you an order confirmation with all of the components itemized for you to review.
Warranty
- Lifetime warranty on manufacturing defects
